Allet MAC-CLASSIC_03

Enquire for Price

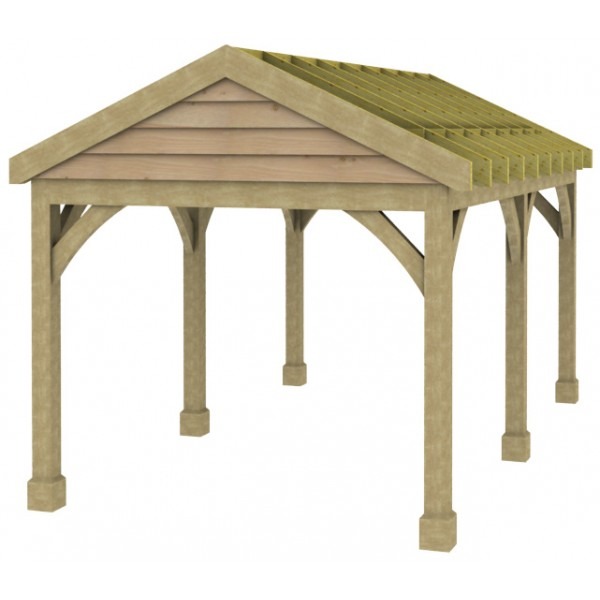

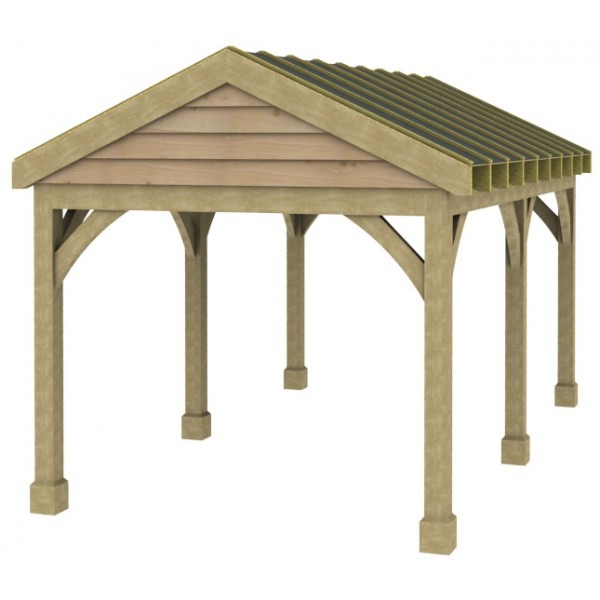

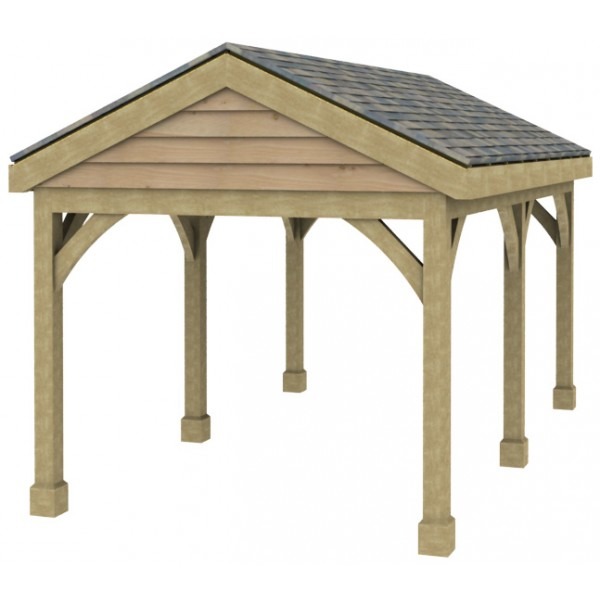

2 Bay Carport with High Pitch Barn End Roof

Guide price inc VAT: £10,090

High Pitch Barn End Roofed (45 degree)Traditional Double Carport. Built utilising our proprietary connective system for easy Assembly to your specification from a selection of Green Oak, Douglas Fir, or Glulam.

Dimensions

ROOF PITCHHigh (45 Degree)
ROOF AREAapprox 47.15 m2
MIN. RIDGE HEIGHT5.293m
MAX RIDGE HEIGHT5.343m
MIN. CLEARANCE HEIGHT2.160m
MAX. CLEARANCE HEIGHT2.210m
EXTERNAL WIDTH5.850m
EXTERNAL DEPTH5.300m
INTERNAL WIDTH5.550m
INTERNAL DEPTH5.000m
INTERNAL BAY WIDTH (EACH BAY)2.700m

Standard Specifications:

  • 150mm x 150mm Square Posts in Timber and Finish of Choice
  • 100mm x 220mm Beams in Timber and Finish of Choice
  • 75mm x 175mm Corner Braces in Timber and Finish of Choice
  • Softwood sawn finish Cut Rafter or Truss Roof (Dependant on design)
  • 9mm OSB roof sarking
  • Tyvek or similar membrane over sarking
  • 25mm x 38mm softwood counter battons ready for roofing lath & tiling
  • Sawn Softwood Feather Edge Cladding 20mm for Walls & Gables
  • 38mm x 89mm Sawn Wall Framing
  • Adjustable height raised post bases & anchor bolts
  • Post, Beam, Brace & Cladding timbers untreated, ready to receive stain or other treatment.
  • Softwood framing & roofing timbers pressure treated with Protim E406 UC2

Options and Upgrades:

You can enhance this initial structure with a choice of products and optional upgrades such as:

Garage Doors  –  Cladding  –  Staircases

Delivery

From the time of order the delivery lead time is usually 4 – 6 weeks, however during busy periods this may be increased to 6 – 8 weeks.

  • The prices shown on this website include delivery within England & Wales. Delivery to Scotland, Ireland, Isle of Man and the Channel Islands are subject to a delivery supplement (Pleasecontact us for a delivery quotation).
  • Delivery is usually made using a 40′ articulated lorry to kerbside for you to unload. We are not responsible for any additional lifting or carrying of your goods. If you do not have offloading facilities we can arrange transport with offloading equipment for a small additional cost but please note the following restrictions:
    a) The outriggers require a MINIMUM of 6′ flat and clear space all around the delivery vehicle.
    b) The HIAB can only offload to an adjacent flat surface. The
    equipment can not lift over walls/fences etc..
    c) The HIAB can not operate if there are tree branches, overhead cables
    or any other obstructions.
  • If access is restricted or difficult to accept an articulated lorry we can deliver with a flatbed vehicle but at an additional cost.

Treatment

All of our Post, Beam, Bracing & Cladding timbers are supplied ‘in the white’, i.e. untreated and undecorated, ready for you to apply whatever finish you wish. If you are having an oak model it may be left untreated but with the Douglas Fir models we recommend you treat it for resistance to water & UV. An excellent product would be Treatex Douglas Fir Protection

All other Softwood (framing, roofing timbers etc.) are pressure treated with Protim E406 UC2

Installation

Although we recommend that an experienced local builder installs your Post & Beam building for you, our system does, with the assistance of a qualified Carpenter or Builder with Timber Frame knowledge, enable you to install it yourself.

Exclusions

  • Foundations – You will need to consult a local builder to advise and construct the  foundations required and this will need to be in place prior to delivery if opting for our installation services
  • Roof Coverings
  • General Fixings – A list of required fixings can be found here

It will be your responsibility obtain all necessary Planning & Building Regulation approvals unless we are engaged to obtain them for you.

Why our Post and Beam?

Hand Crafted

Choice of Timbers

Sarked Roof

Stronger Beams

Wider, Longer Bays

Easy Accurate Leveling

Trouble Free Assembly

Low Build Costs

Minimal Foundations
